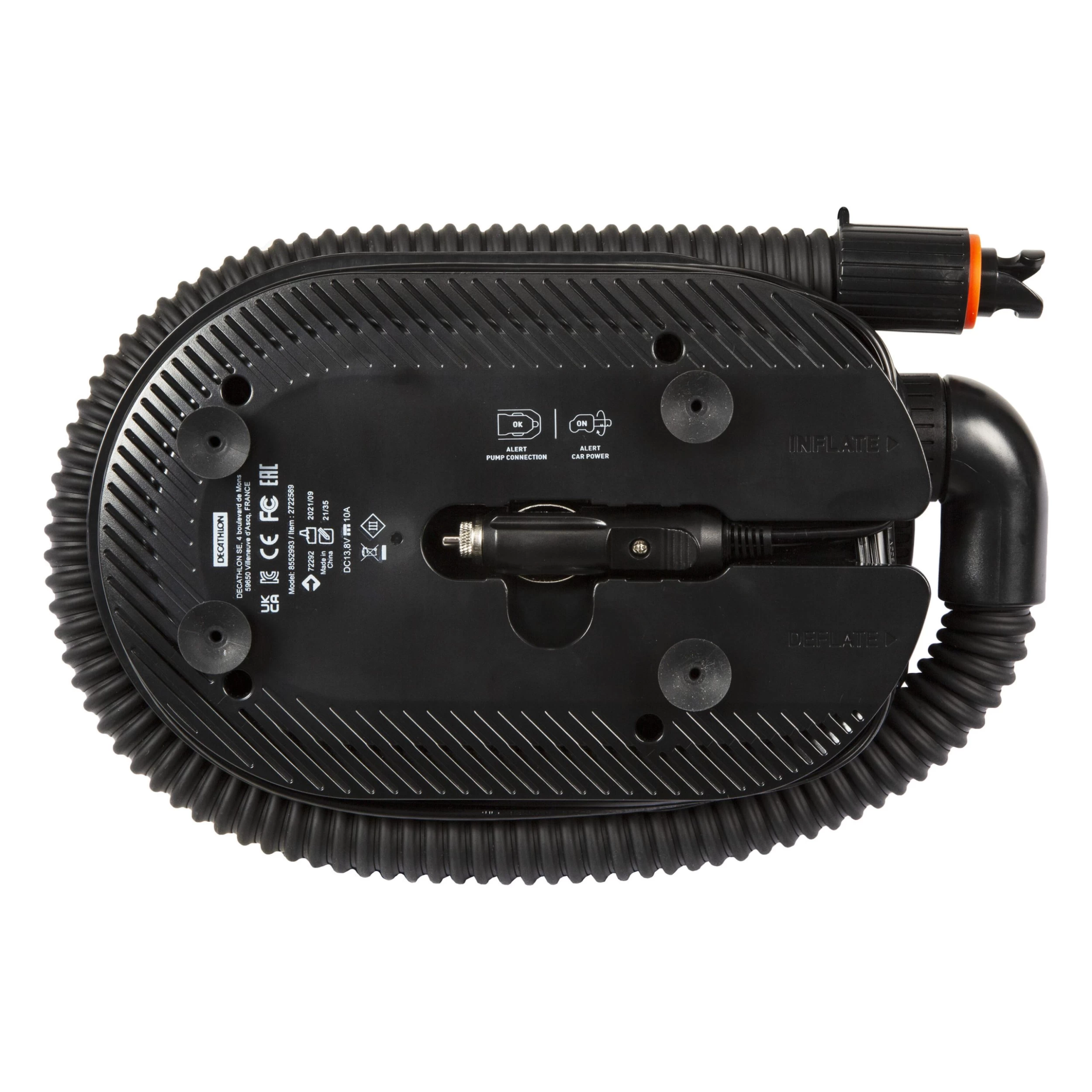

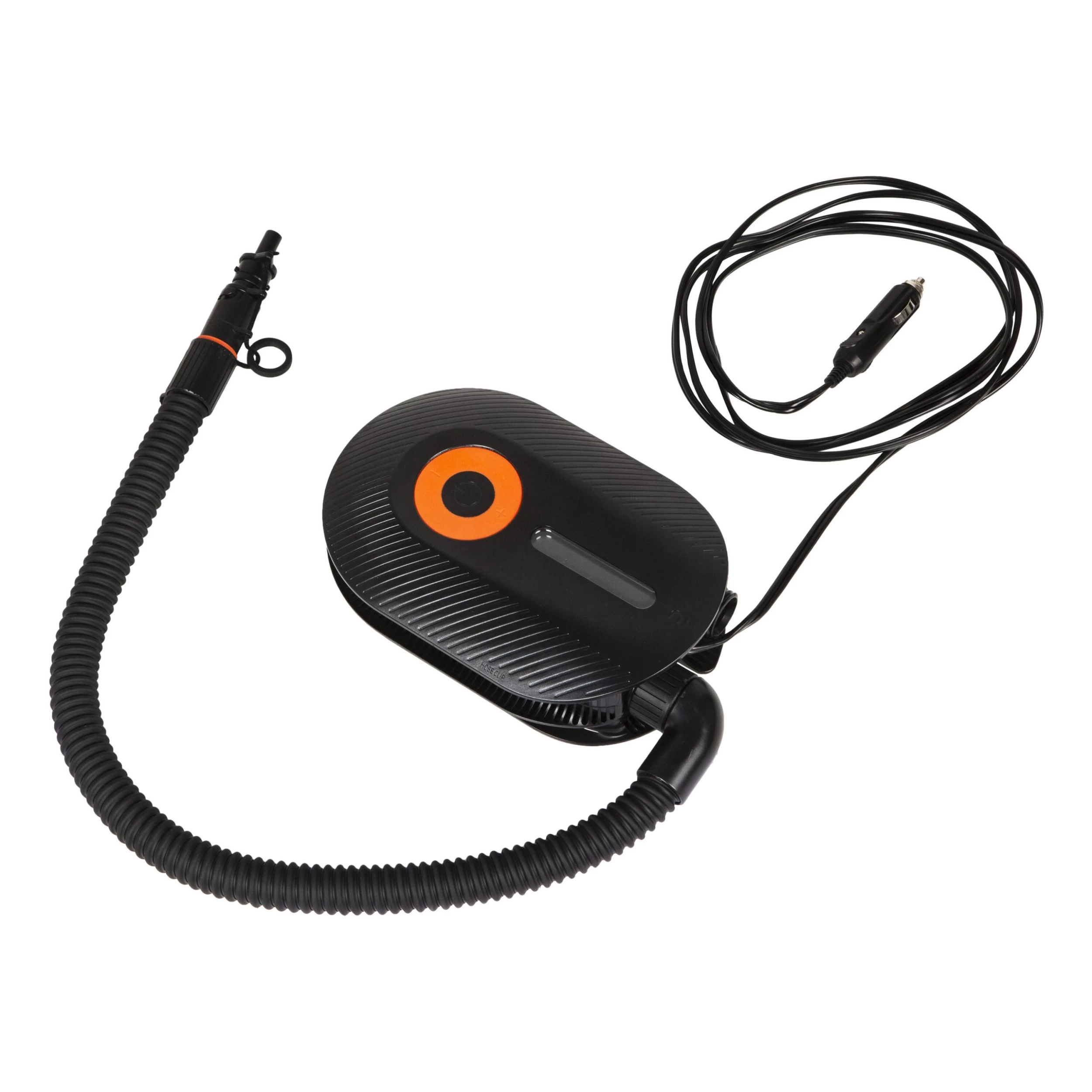

Quechua ELECTRIC CAMPING PUMP – ULTIM COMFORT 20 PSI

Our team of camping enthusiasts has developed a new electric pump that connects to a vehicle power socket to easily inflate your inflatable tent!This electric pump connect to the 12 V socket on your running vehicle (13.8 V-10A). Inflate your tent easily thanks to its extension, SUP, kayak, etc., up to 20 PSI (1.37 Bar)

Connection

Operates connected to a 12 V vehicle power socket, engine running (13.8 Volt)
5 metre extension.
Compatible with minimum 10 amp fuses.
Provides pressure up to 20 PSI( 1.37 bar).

SAFETY ALERT

If you forget to start your vehicle’s engine or in case of bad contact with the power socket, your pump will automatically issue a warning and will stop to avoid damaging the vehicle’s fuse.

INFLATION

– Connect to the pump to the power socket with the car engine running,
– Connect the pump tube to the tent,
– Select the pressure: PSI/Bar,
– Adjust the recommended pressure using the +/- buttons,
– Start to inflate by pressing POWER,
The pump will stop automatically when it reaches the target pressure.

Adjust the target pressure by 0.1 PSI (0.01 Bar) up to 20 PSI (1.37 BAR)
A volume cycle up to 0.4 PSI then a pressure cycle up to 20 PSI

DEFLATION

– Connect the pump to the power socket,
– Connect your tube to the “DEFLATE” outlet on the pump and connect it to your tent’s valve,
– Select the pressure: PSI/Bar,
– Press the (-) button until “DEFLATE” is shown on the screen,
– Start the deflation by pressing “POWER”,
– To stop it, press “POWER” or wait 120 seconds until the cycle ends.

SIZE

Length: 28.5 cm
Width: 19 cm
Height: 9 cm
Pump weight: 1.6 kg
Extension cable weight: 315 g
Total weight: 1.9 kg

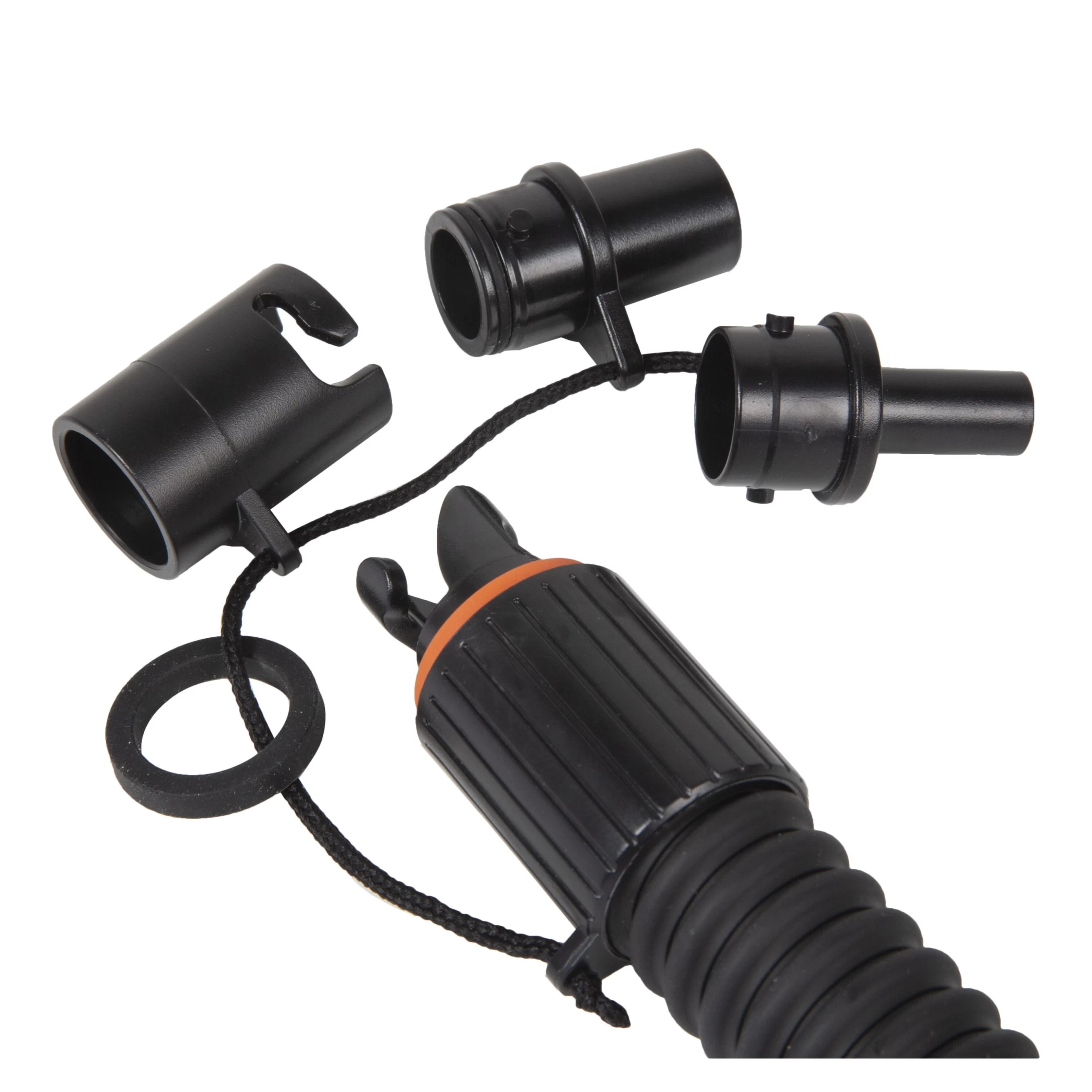

Supplied with a set of multi-tips

As well as its “boston” tip to inflate inflatable tents, mattresses and low pressure kayaks, the pump comes with:
– 1 x 5 m extension cable to make inflation easier on your campsite
– A high pressure SUP and KAYAK drop stitch tip
– A mini boston tip to inflate kayak seats
– An adaptor and tip to inflate certain kitesurf wings
